Introduction

The design of the main battle tank is considered to be exhausted and improvements are impossible. This concept defies this statement and can significantly increase the survivability of tanks and other armoured vehicles, and also totally change the tactics of combat operations.







The Concept.

Standardization of the appearance of different types armoured vehicles.

Development of one or more standard design types of hulls. Hiding from the enemy what kind of vehicle is in front of him. The technology will make the work of enemy intelligence much more difficult as his correct response to any tactical moves. Also, the new technology makes it difficult for the enemy to plan the attack and other operations since his determination of defence potential in a specific area becomes significantly more complicated. The effect is especially powerful if the uniformity of the external appearance of air defence/artillery, mortars, LRMS/tanks/armoured personnel carriers (APC) is reached. To attack each of these types of armoured vehicles or to defend against them the enemy needs to use completely different, often mutually exclusive tactics. For example, when tanks or artillery are approaching, it is rational to inflict air strikes on them, however, if the air defence group approaches, it is better to inflict the attack by infantry or tank formations. It makes sense to hit the frontal projection of an infantry fighting vehicle from a small-caliber automatic cannon or RPG, but it is not rational to act against the tank in the same way. If it is not clear for the enemy which vehicle is moving, such an attack is unlikely to be attempted due to high risk to the attacker. The technology is ideal for hybrid wars when it is necessary to hide the presence of air defence or heavy artillery. Ground surveillance, satellite reconnaissance or using of drones will not help to get rid of confusion.

Standardization of the appearance of different types armoured vehicles.

Development of one or more standard design types of hulls. Hiding from the enemy what kind of vehicle is in front of him. The technology will make the work of enemy intelligence much more difficult as his correct response to any tactical moves. Also, the new technology makes it difficult for the enemy to plan the attack and other operations since his determination of defence potential in a specific area becomes significantly more complicated. The effect is especially powerful if the uniformity of the external appearance of air defence/artillery, mortars, LRMS/tanks/armoured personnel carriers (APC) is reached. To attack each of these types of armoured vehicles or to defend against them the enemy needs to use completely different, often mutually exclusive tactics. For example, when tanks or artillery are approaching, it is rational to inflict air strikes on them, however, if the air defence group approaches, it is better to inflict the attack by infantry or tank formations. It makes sense to hit the frontal projection of an infantry fighting vehicle from a small-caliber automatic cannon or RPG, but it is not rational to act against the tank in the same way. If it is not clear for the enemy which vehicle is moving, such an attack is unlikely to be attempted due to high risk to the attacker. The technology is ideal for hybrid wars when it is necessary to hide the presence of air defence or heavy artillery. Ground surveillance, satellite reconnaissance or using of drones will not help to get rid of confusion.

Confusing the enemy soldiers, intelligence, strategic and tactical command, AI.

In addition to confusing of the enemy strategists and tactics, represented by personnel, the potential artificial intelligence (AI) which will command the other army shall be confused. AI has a much higher factor of the fighting rationality and logistics management effectiveness. In the case of a battle of two AIs of equal power, a new type of cloaking, that is, the inability to recognize and establish the types of vehicles will give the necessary advantage. The technology can give a chance to a human-operated army against AI. The technology will confuse the enemy human or AI command provoking them to make wrong decisions, prevent effective use of aviation and will overload enemy army by the need of heavy strikes by any target because it can be in the same moment the air defence unit, the tank, or the personnel carrier. It is also difficult for any enemy personnel on all levels to recognise the type of vehicles attacking and choose the right action directly on the battlefield. Even in the case of fire contact and demonstration of the type of specific units, vehicles, it is enough to regroup at a hidden position and, if possible, change the painted designations on the hull, to renew the confusing effect. Armour improvement. Since the hull is a little bigger than the present ones for some types of vehicles, for example, tanks, the additional armour layers, including active armour, can be placed there. Also, additional space can increase the ammunition load. Niches with additional weapons, equipment can be located in that space. In general, the survivability of vehicle is greatly increased. At the further images, the medium standard case is shown. In the case of increasing of the hull height, the roof protection and the ammunition load will be significantly increased. But the frontal projection will increase too to the level of some modern armoured vehicles, such as Puma. Any armour of different types at more rational angles and/or in several layers can be mounted inside the "outer" hull if necessary.

Armour improvement.

Since the hull is a little bigger than the present ones for some types of vehicles, for example, tanks, the additional armour layers, including active armour, can be placed there. Also, additional space can increase the ammunition load. Niches with additional weapons, equipment can be located in that space. In general, the survivability of vehicle is greatly increased.

At the further images, the medium standard case is shown. In the case of increasing of the hull height, the roof protection and the ammunition load will be significantly increased. But the frontal projection will increase too to the level of some modern armoured vehicles, such as Puma. Any armour of different types at more rational angles and/or in several layers can be mounted inside the "outer" hull if necessary.

Parts and modules standardization.

If the army uses the proposed concept, the vehicles and their parts will become more standardized. This will speed up and simplify repairs and reduce the parts costs and production costs.

Implementation example.

The technology supposes to use of one middle type of a universal vehicle, or two universal types: small and large. Track or wheeled versions of vehicles can be made. Small (8m) is for tanks, infantry fighting vehicles, mortars, small air defence, small-caliber multiple launch rocket systems (MLRS) (220mm). And the large one (10-12m) for artillery, long-range air defence, MLRS of bigger calibre (240-300mm), large-caliber missiles. However, it is problematic to place a gun longer than 6.6 m in a small hull which is necessary for example for tanks with guns calibre greater than 120 mm. It is possible to standardize only BMP, MLRS, air defence, as an optional solution, but for the tank, the effect of the new armour is much bigger. For example, a medium-sized case is described (9m length, 2.3m height without a machine gun, 500mm clearance), which allows the 140mm or 152mm cal. tank gun to be placed. For comparison, the M1 Abrams tank has a hull length is 7.9 m, and with the gun, the tank is 9.8 m long. In such hull (9m) it is possible to install main artillery weapon up to 240mm, for example for the mortar "Tulip" and the like. Also, a significant increase in the size of the ammunition compared to modern tanks has been achieved. Up to 60-100 rounds of 120-152mm calibre. It is essential for automatic mortars and artillery.The ammunition is optimally positioned to automate ammo delivery.

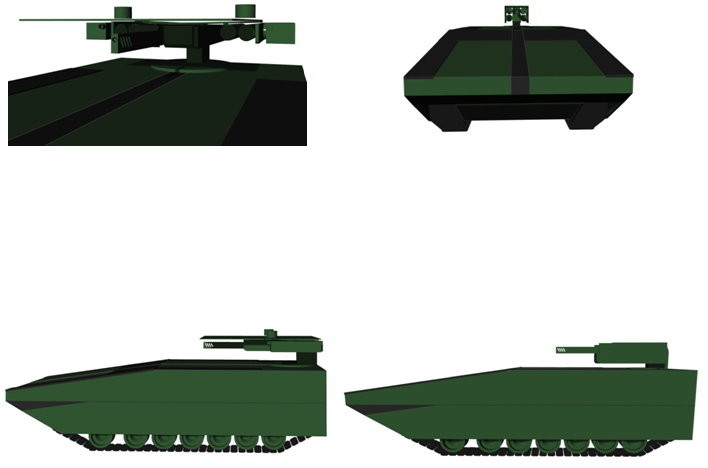

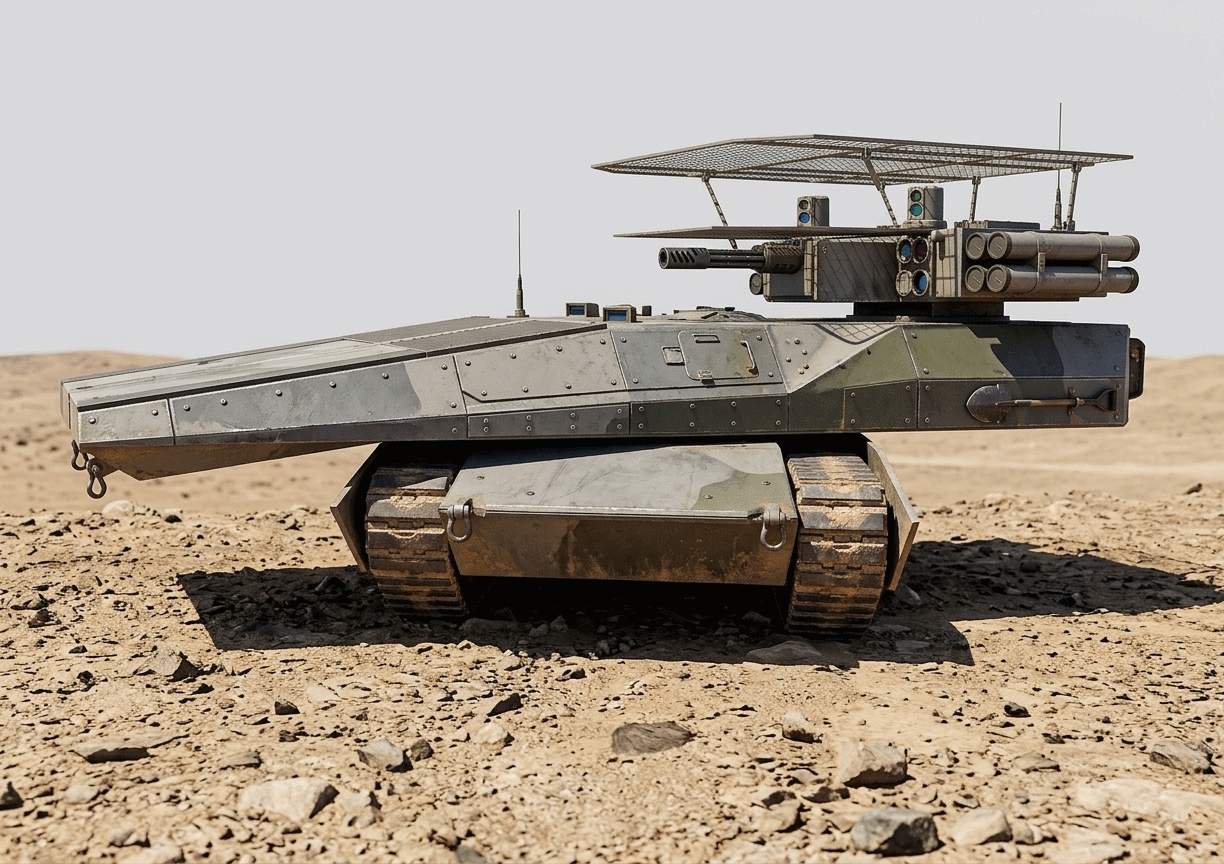

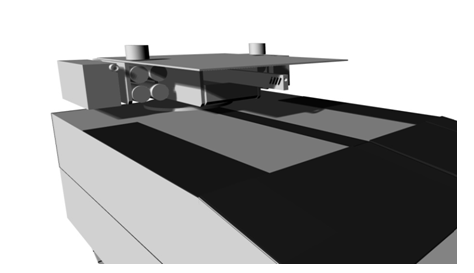

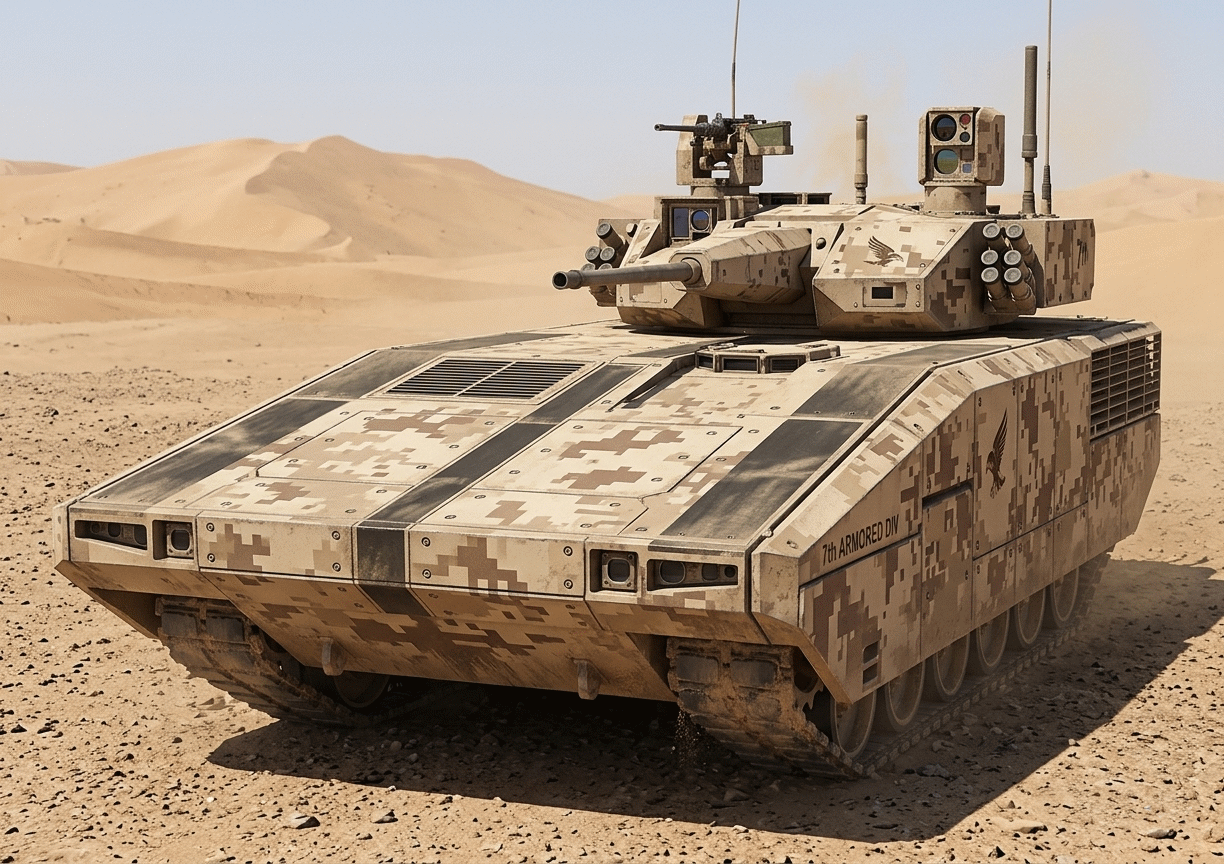

Also, there is an additional uninhabited turret on the roof of the vehicle. It can be equipped with 50cal. machine gun or 20-50mm autocannon. The autocannon is installed in the standard cannon case which hides it and prevents detection of vehicle type by weapons type. It also protects the autocannon from negative atmospheric impact improving accuracy. The turret has 4-8 anti-tank and/or anti-air rocket launchers and two automatic mortars. Mortars can attack the enemy behind obstacles using drones information or being guided by other information.

All the BLACK BOX vehicles must be equipped with same looking weapons. Some parts of the turret can be made fake to achieve that. As a variant of the concept realization, all weapons can be made hidden in the upper, front or side parts of the hull with the ability to move out for acting. It can lower the visual and radio visibility of the vehicle but it will lower the internal volume of the vehicle. Or it will require to make the vehicle higher, up to some modern combat vehicles size, for example to 2,7-3m. But it also would significantly improve the roof armour, that can be considered the good option. As the other variant, the top turret can be totally covered by the big standard case which hides all that weapons. The concept is expected to include all modern systems of active and passive protection, surveillance, guidance, etc. It is recommended to make standardized vehicles modular. All modules, such as engines, power units, ammo packs, etc. better to be exchangeable and fast removable. It is recommended to mainly use the tactics of shooting out of enemy view. Use of automated mortars with guided ammo preferred. Target detection is to be made from drones, special missiles, shells, etc.

The concept is expected to include all modern systems of active and passive protection, surveillance, guidance, etc. It is recommended to make standardized vehicles modular. All modules, such as engines, power units, ammo packs, etc. better to be exchangeable and fast removable. It is recommended to mainly use the tactics of shooting out of enemy view. Use of automated mortars with guided ammo preferred. Target detection is to be made from drones, special missiles, shells, etc.

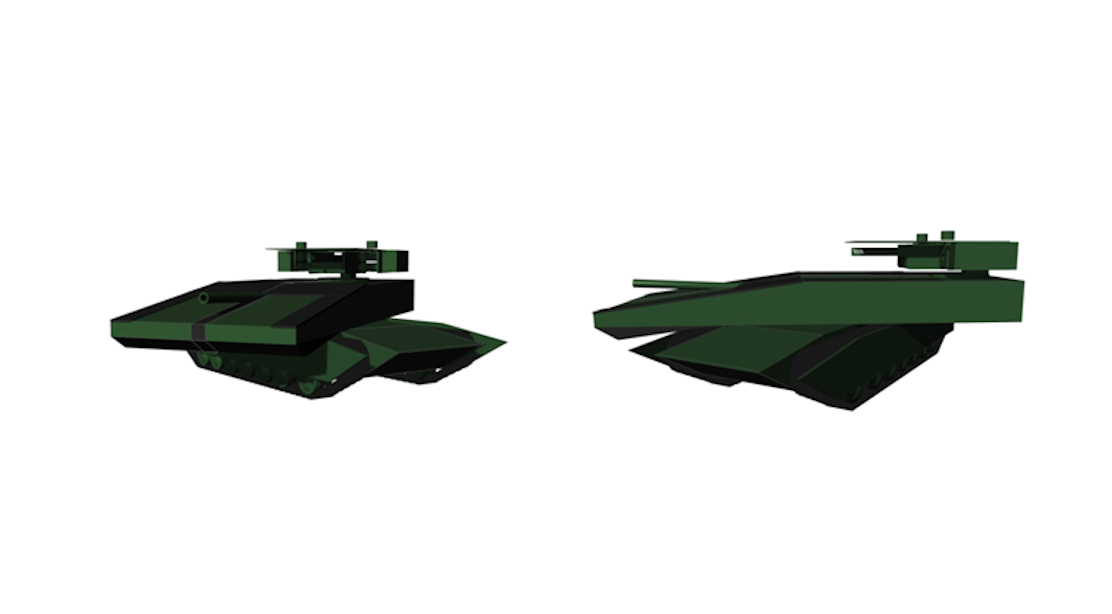

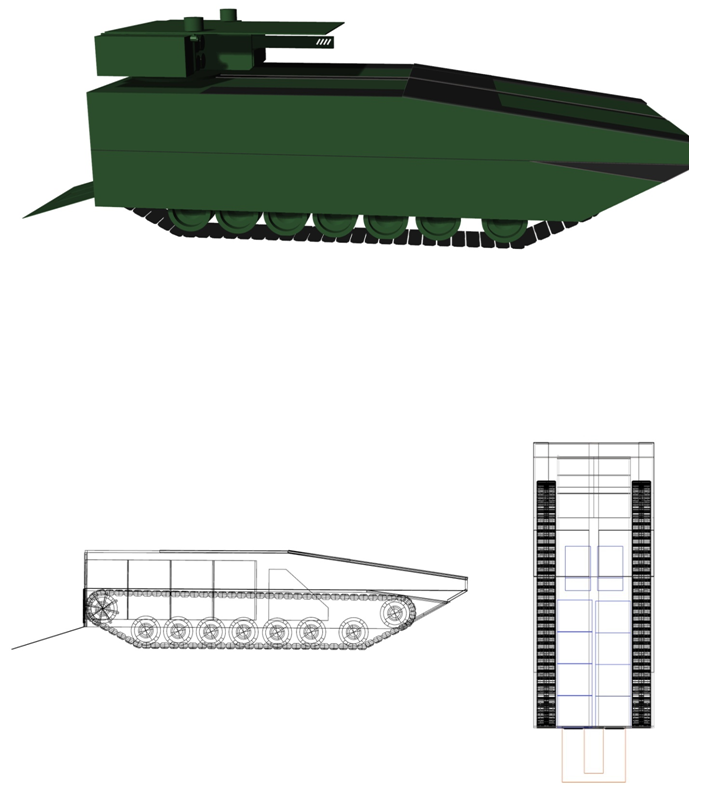

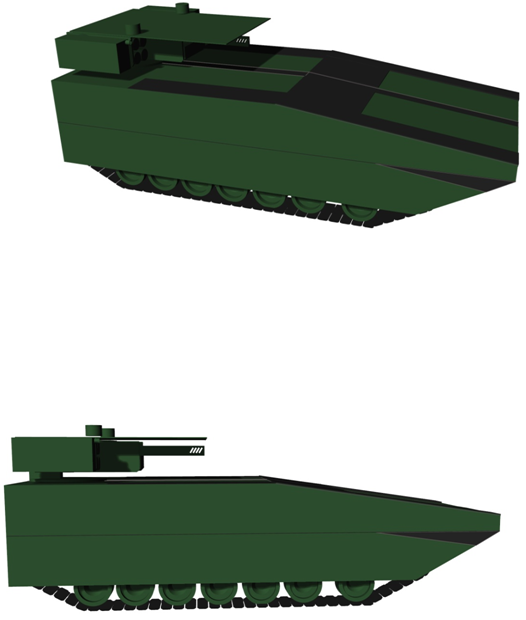

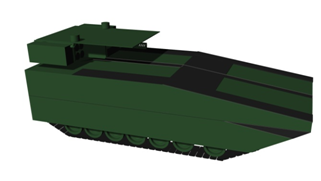

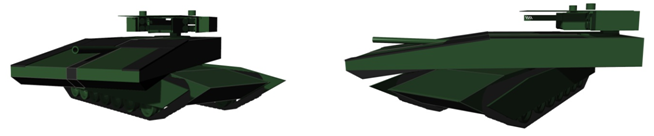

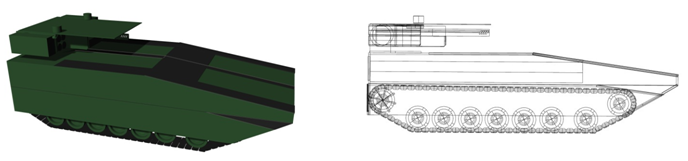

1. BLACK BOX. Standardized Armored Vehicles (SAV) appearance.

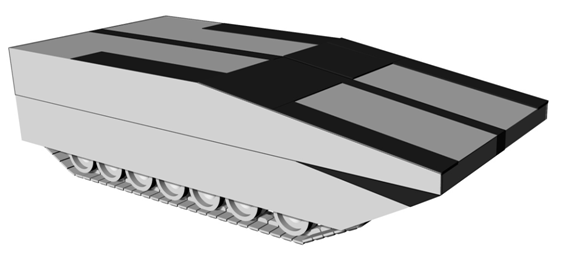

 It is supposed to use standard masking overlays for all types of SAV in places where some of the types have opening hatches, niches (shown in black). This will prevent recognition.

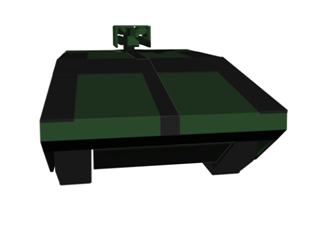

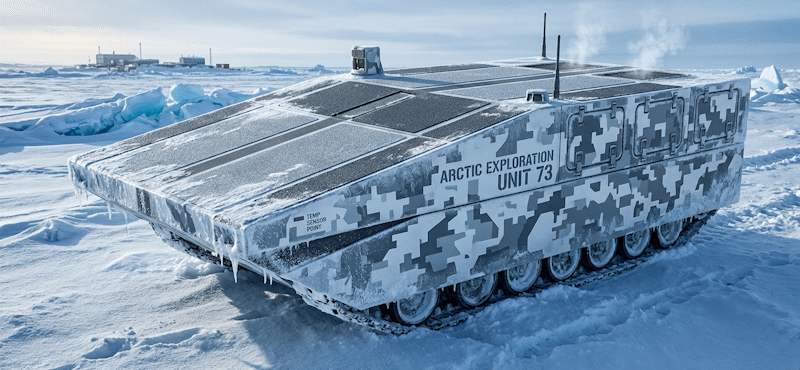

2. BLACK BOX. The variant with weapons completely hidden in the niches in the hull.

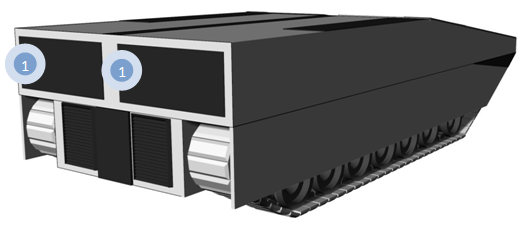

3. In the back side of the hull, as an option, there are hatches (item 1) for ammunition loading.

It can be loaded in the form of cartridges with all ammunition stock or by flat by one layer cartridges, or one by one ammo unit. It can be made by mobile automatic loaders or by loaders located at the base. This will speed up the reloading and the return of the vehicle to battle.







4. BLACK BOX Tank.

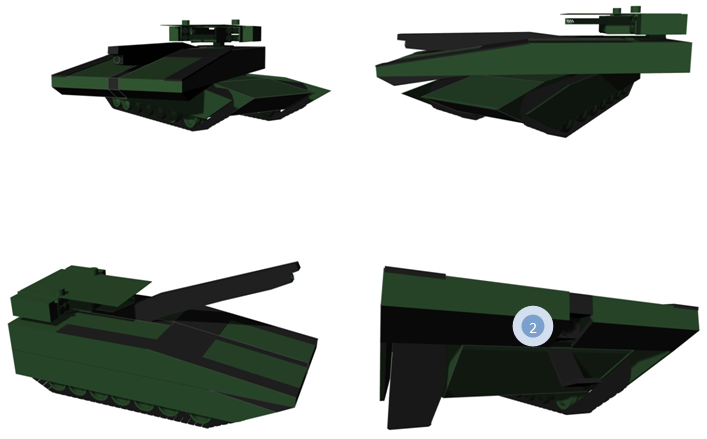

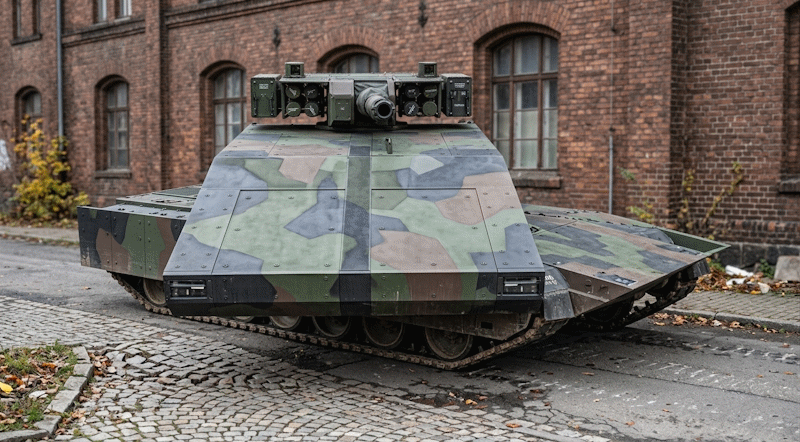

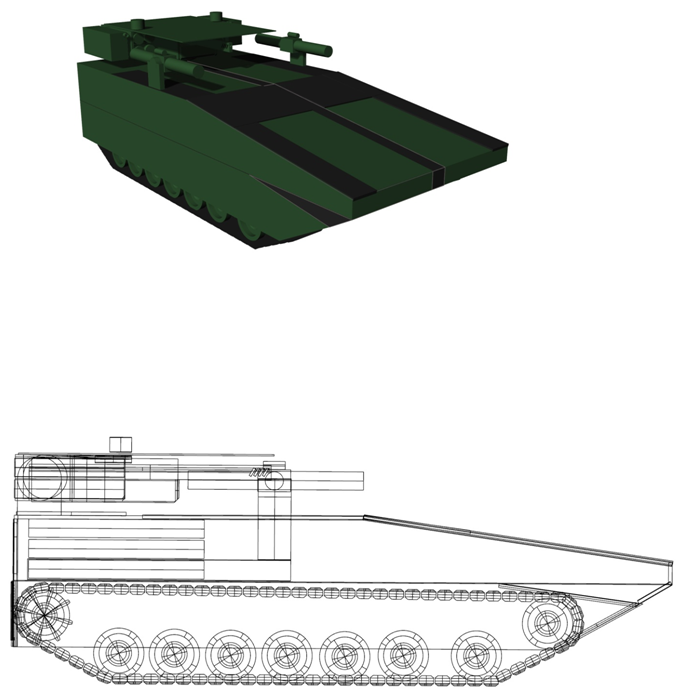

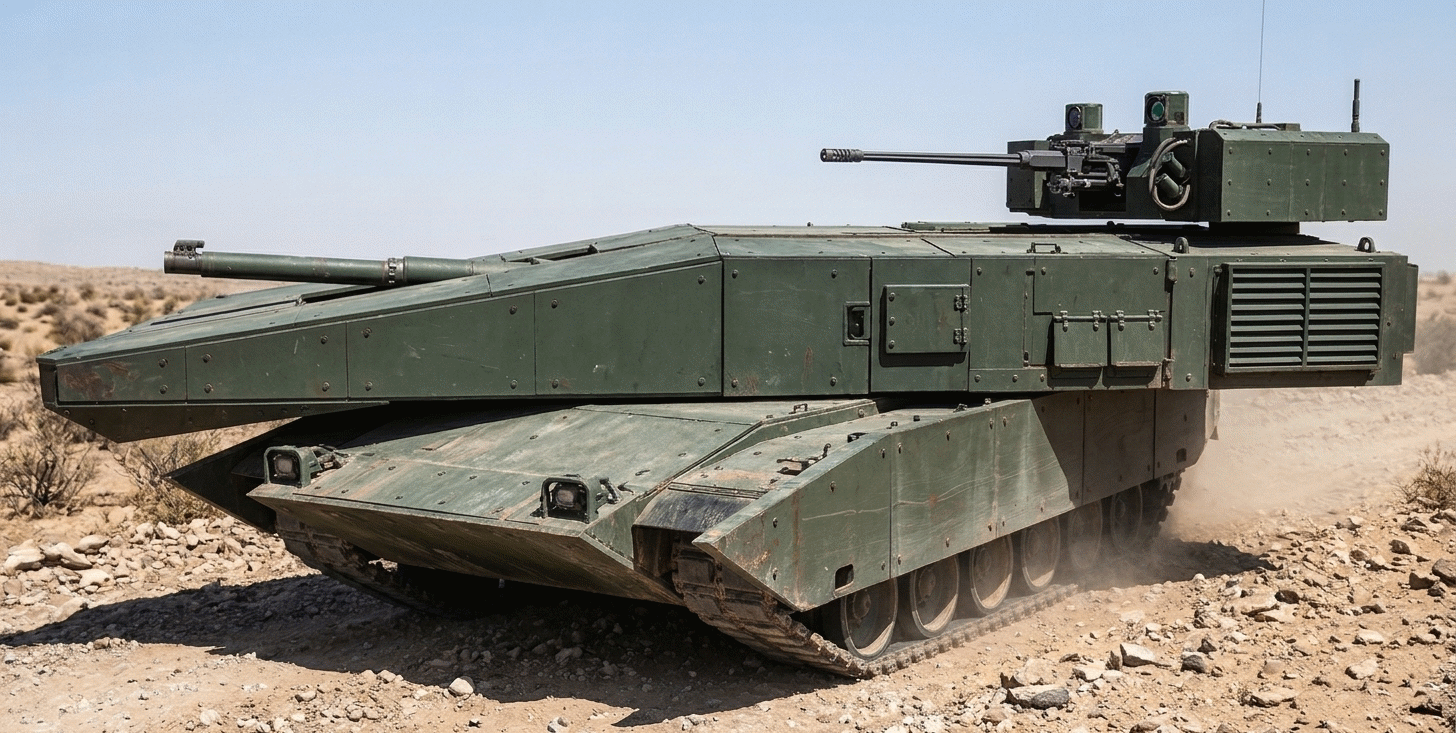

4.1 . The appearance of tank based on the BLACK BOX technology









 Version with cannon protection cover having elements of armour, protecting from negative weather conditions, that increases accuracy.









On the front side and optionally on the upper side of the tower there is a camouflage cover (2) for the cannon, which opens to fire.

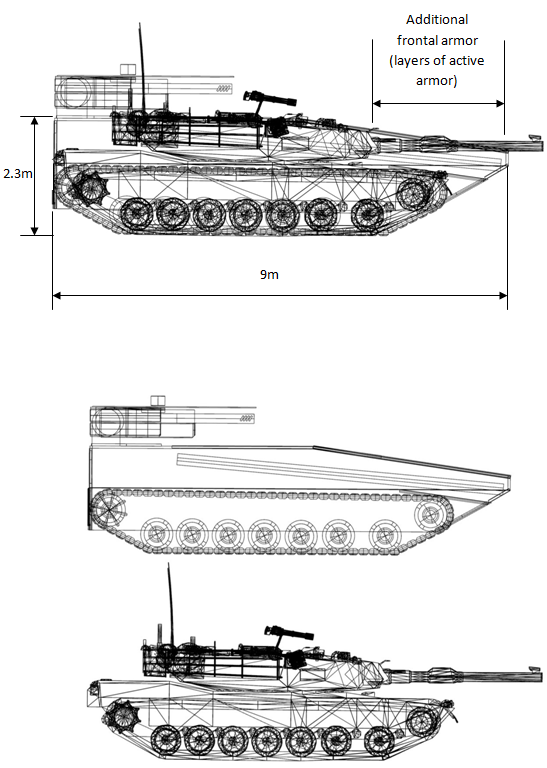

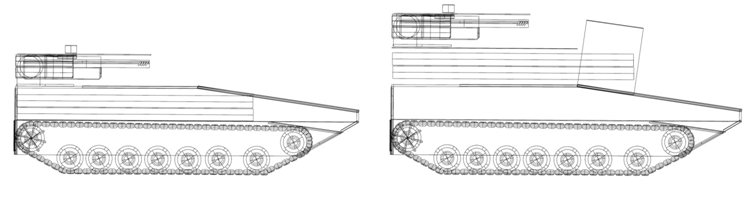

4.2 Size comparison with the M1 Abrams tank.

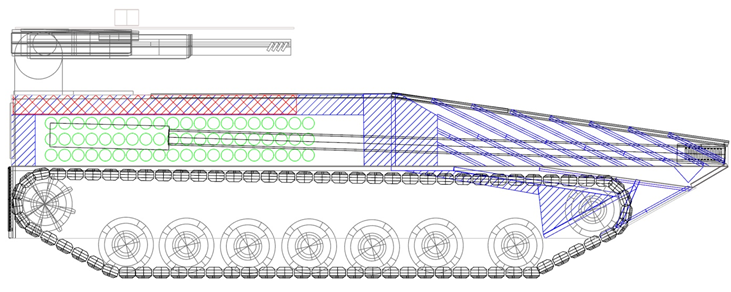

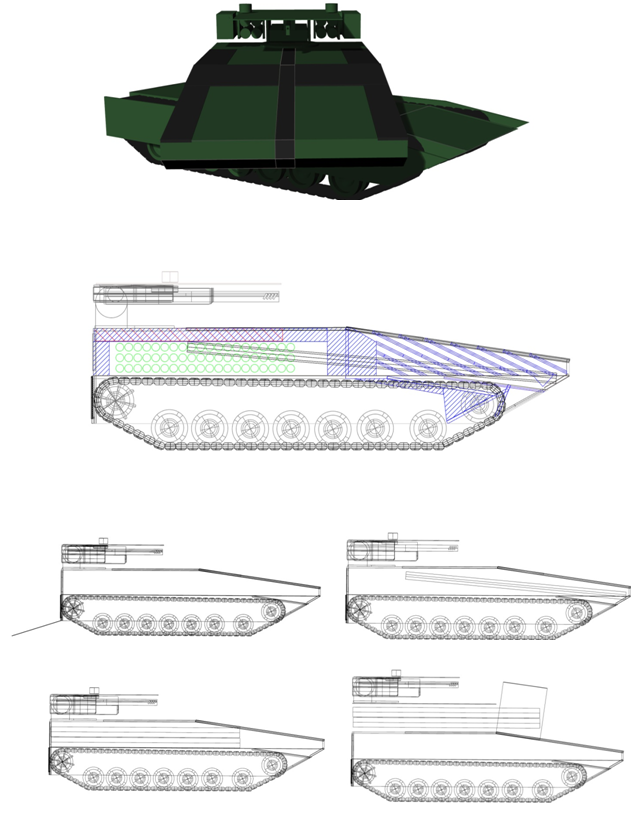

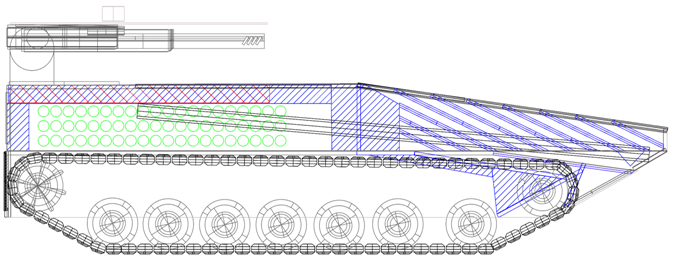

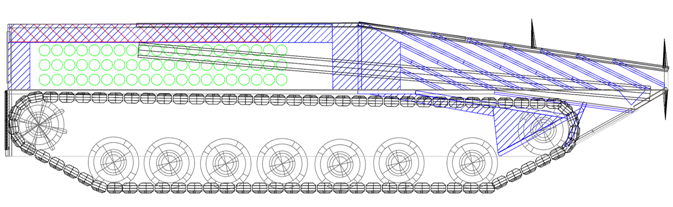

4.3 Multi-layer improved BLACK BOX tank armour.

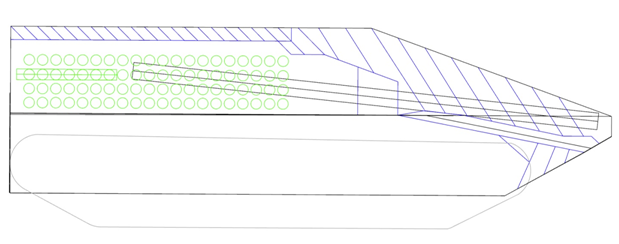

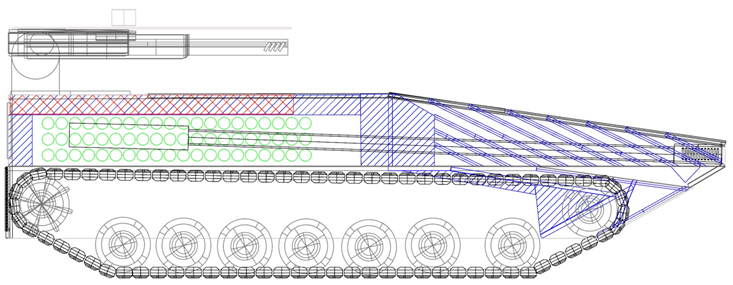

2.3m high version with one side 60 rounds ammunition of 120-152mm calibre.

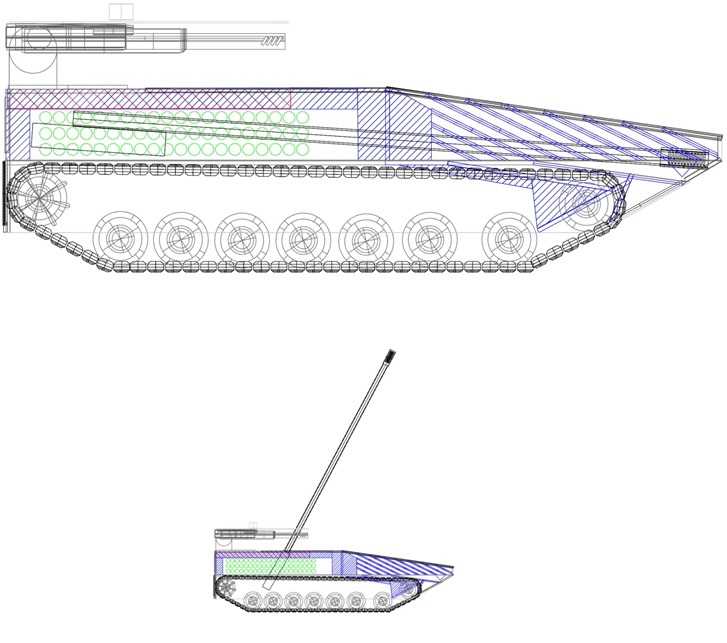

3m high version scheme with improved 20-40cm roof armour and bigger ammo amount up to 80 rounds of 120-152mm calibre. Additional upper turrets can be made hideable in the niches in such roof.

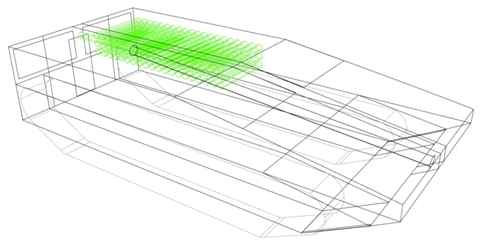

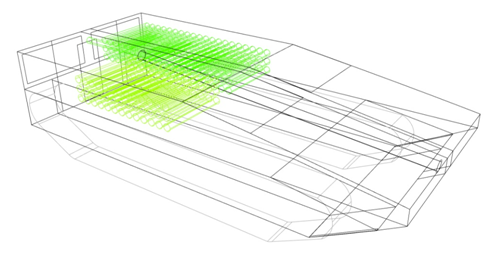

5. The size of the ammunition for the tank and other BLACK BOX vehicles.

Ammunition is arranged in rows. In this example, there are 60 rounds of 120-152mm calibre. The manual or automatic feed through the hatches in the back of the housing or the roof, in the form of a cartridge or otherwise, is simplified.

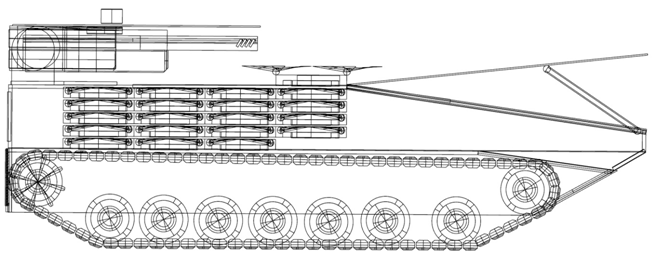

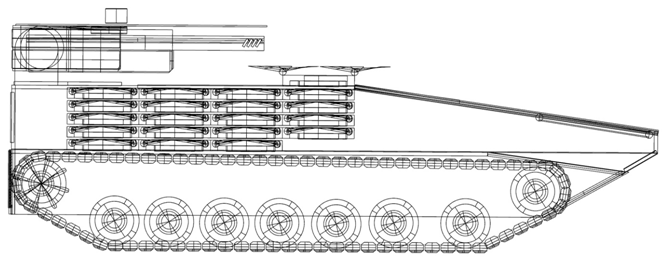

Additional ammunition for the tank, artillery, automatic mortar. In this example there are 100 rounds of 120-152mm calibre. However, for the tank, the risk of ammunition hit will increase due to increasing of its volume.

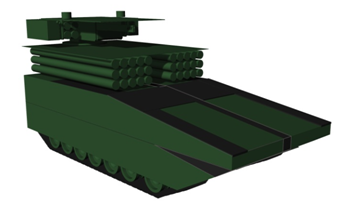

6. BLACK BOX MLRS



Hidden weapons.

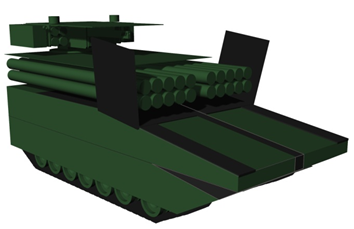

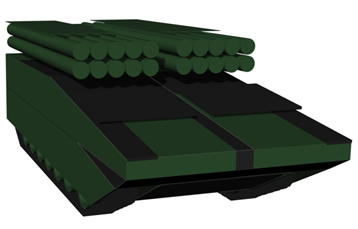

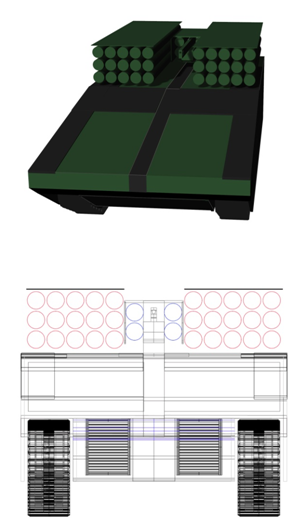

Weapons are ready to fire. 240mm, 300mm MLRS

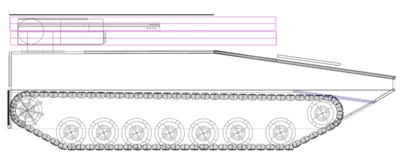

300mm MLRS.

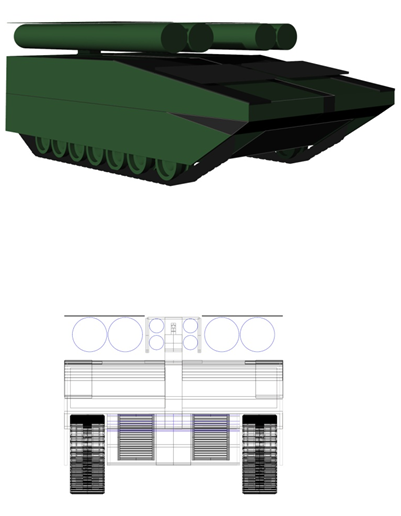

7. BLACK BOX rocket tank.

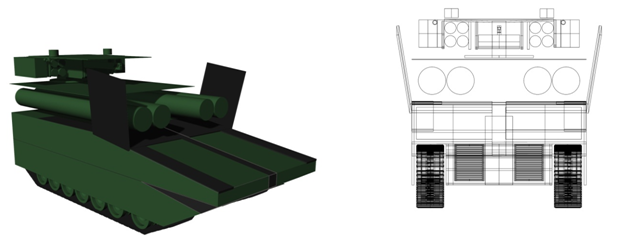

8. Anti-air systems and Medium-range rocket system based on the BLACK BOX technology

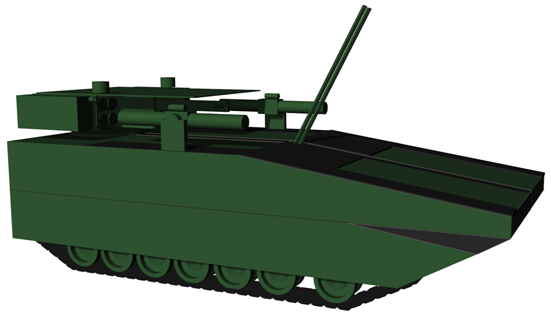

Double 2x 23mm AA-guns with radar. All that can be hidden in responsible niches in the hull.



Quad 23mm AA-guns that can be hidden in the responsible niche in the hull.



All those AA-guns can be combined with previously described rocket tank AA rocket systems.

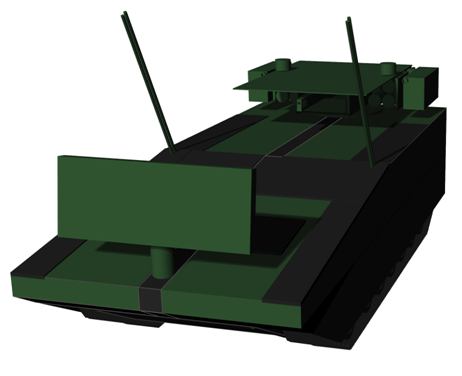

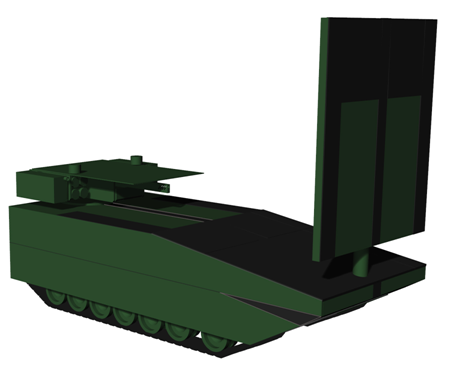

Radar vehicle for AA or artillery squads. Radar is folding with fake hatches drawings.



Long range anti-air rocket system. Or medium range ground rocket system. Hidden weapons. 600mm diameter rocket case example.









Weapons are ready to fire.

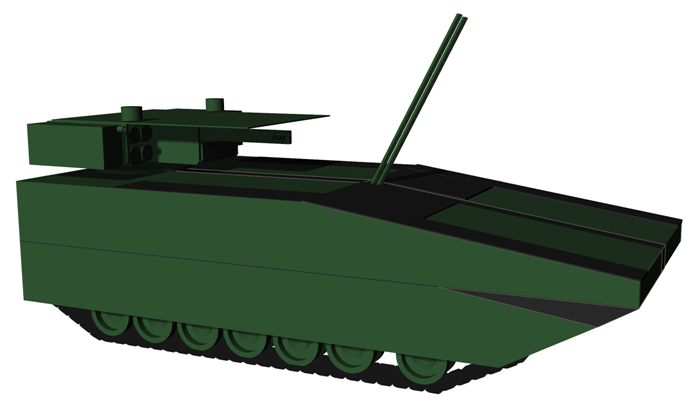

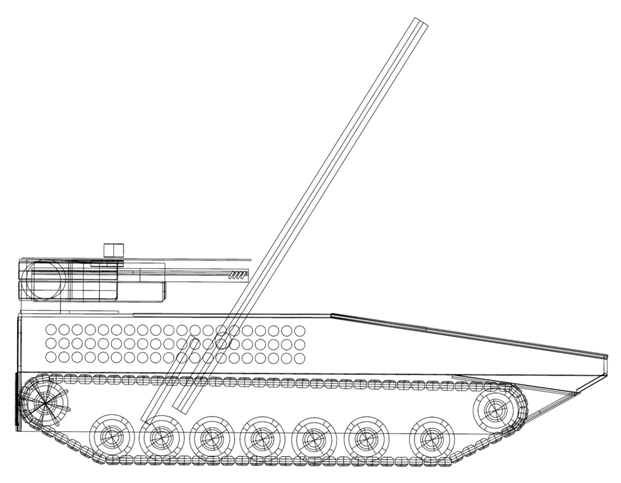

9. BLACK BOX Artillery or Heavy Mortar



It has bigger ammo load than any modern mortar or artillery.

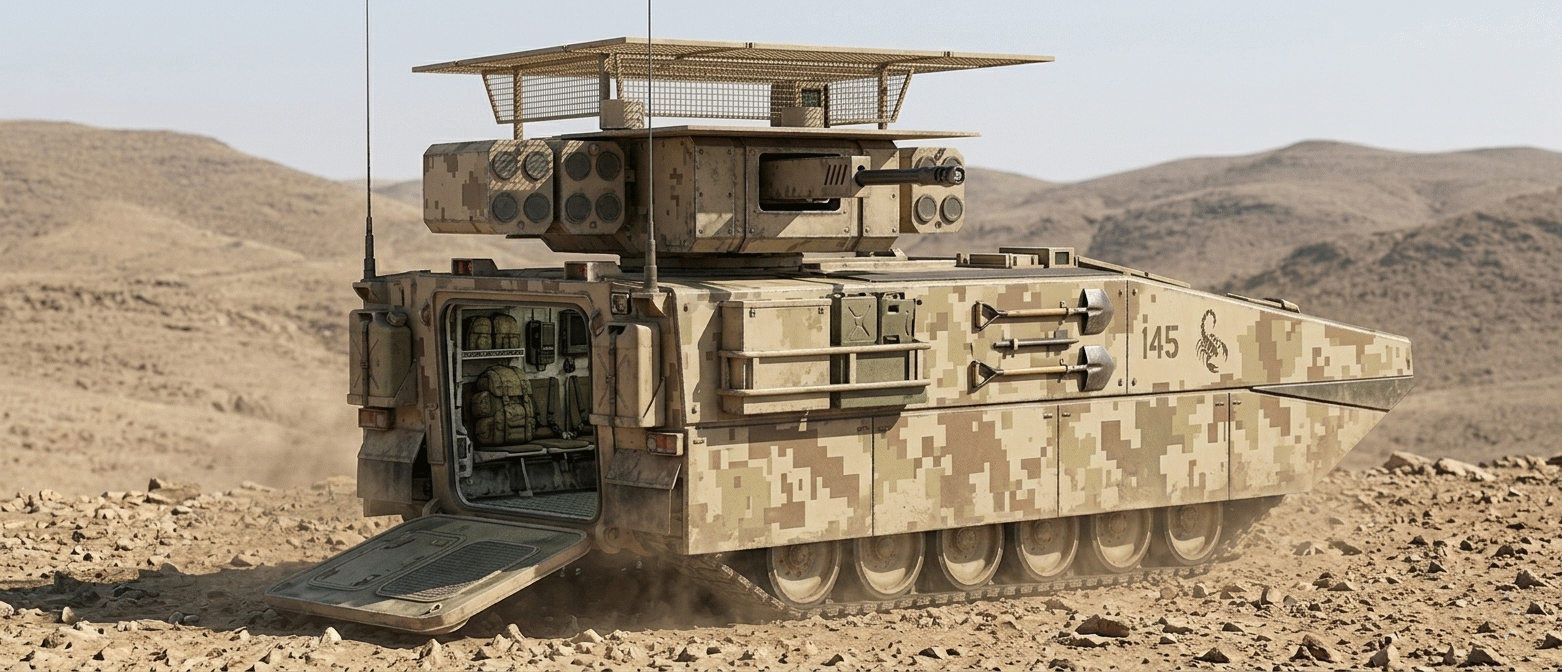

10. BLACK BOX Armored personnel carrier (APC)

In the middle version (9 m), 8 + 2 people are comfortably accommodated. In the small 6 + 2.





11. BLACK BOX Intelligence/attack drones carrier vehicle.







Take-off platform raised (optional).

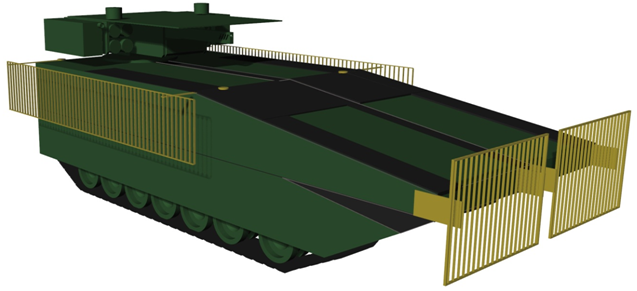

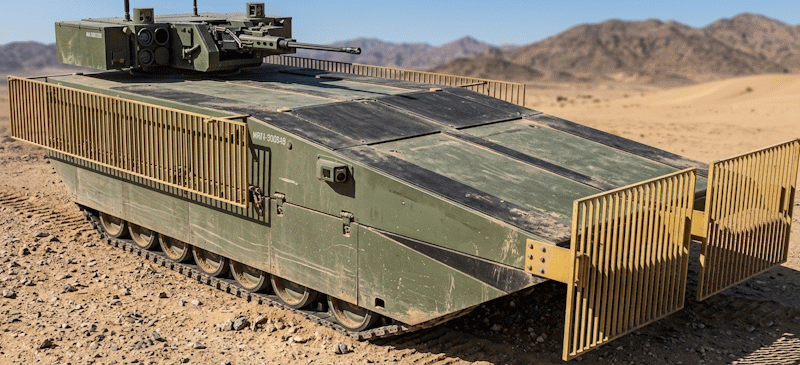

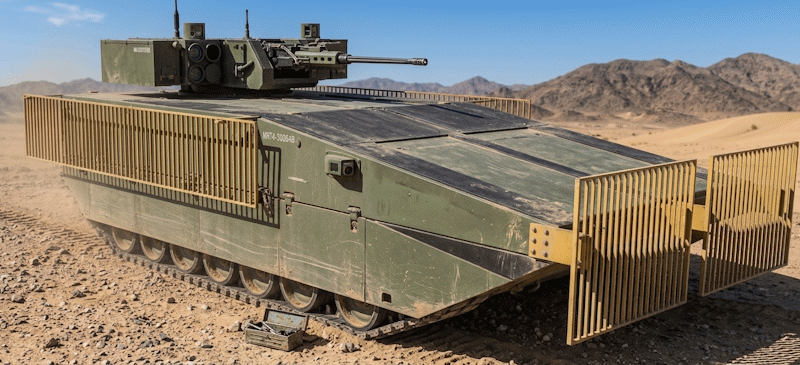

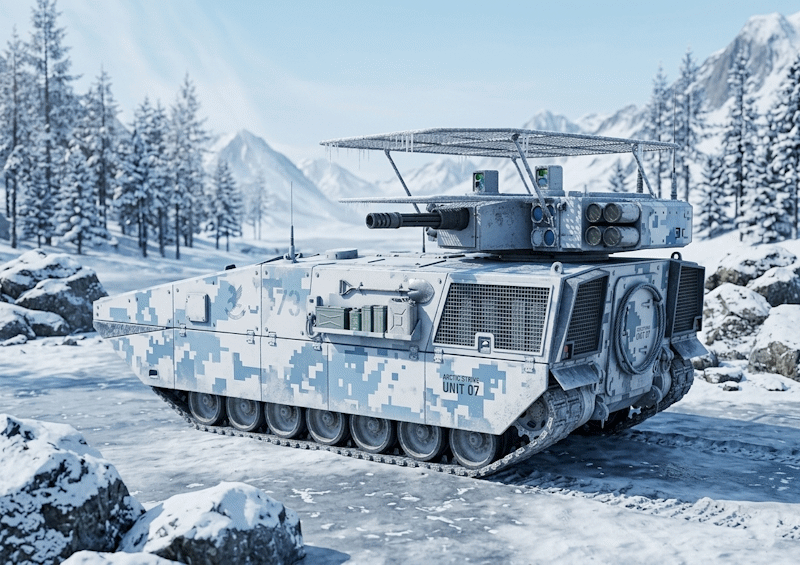

12. Additional screens, grids protection











Recommendations for testing the technology:

When testing in a virtual imitation environment, make sure that the AI enemy can not identify specific types of vehicles directly by its type (id). Perhaps it will be easier by adding one vehicle unit with the ability to select its properties once after entering the battlefield. It is also advisable to avoid standard formations of the vehicle, for example, air defence group in location defence position, to prevent recognition. The expected efficiency increase of the party equipped with new vehicles is about from 20% to 200%, and possibly more.



Summary.

The new technology makes it possible to significantly improve the camouflage, armour, ammo quality, vitality, repair and maintenance speed, general effectiveness and tactics of all new type armoured vehicles on the battlefield.



Ivan Buhaenko

 Aug 10, 2017
